Product UHF-SYS-GATE-PASS-ETSI

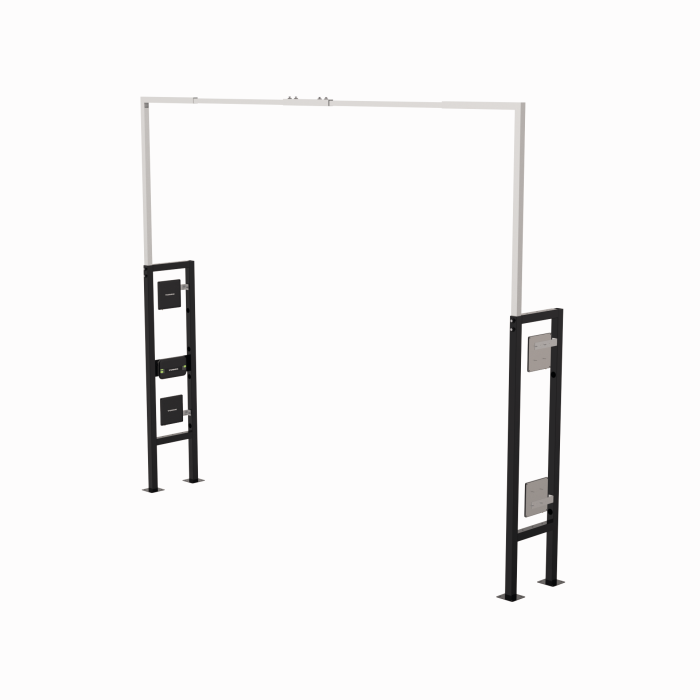

UHF RFID Gate Solution
Order number: 100051343- UHF RFID GATE for the (bulk) detection of objects, e.g. during loading
- Pre-installed TVSnode software for commissioning and communication via integrated REST API interface

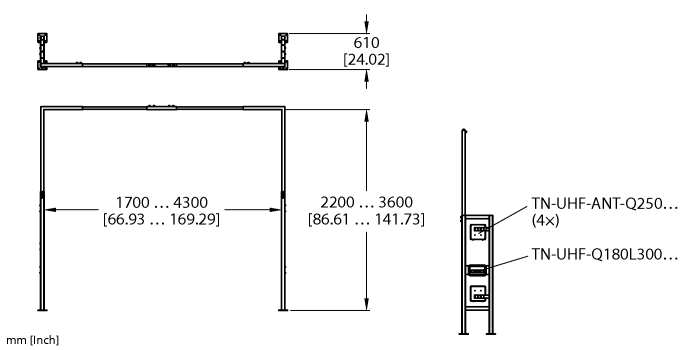

- Variable frame size
- Width: 1700…4300 mm
- Height: 2200…3600 mm
- Device only suitable for operation in the European Union (EU), India, Türkiye and South Africa at 865…868 MHz
General data
| EAN | 4047101685206 |
| eCl@ss-Code (V5.1.4): | 27280401 -/- Identification RFID |
| Customs tariff number | 84719000000 |
| Country of origin | DE |
| Weight | 117600 g |
Technical Data
| Technology | UHF RFID |
| Region (UHF) | Europe, India, Turkey, South Africa (865…868 MHz) |
| Radio communication and protocol standards | ISO 18000-63, EPCglobal Gen 2 |
| Network protocol | TCP/IP, REST API |
| Housing material | Aluminium Anodized aluminium, AL Anodized AL, Black-finished |
| Ambient temperature | -30…+50 °C |
| Protection class | IP67 |
