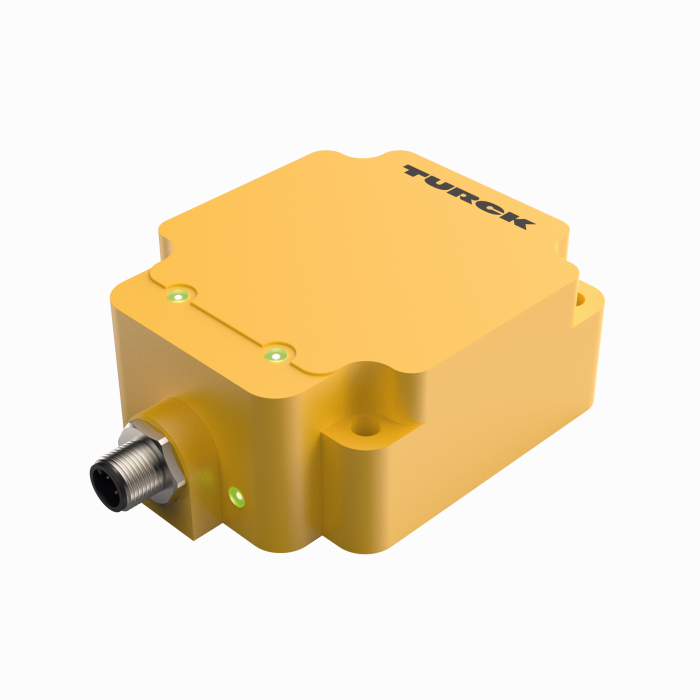

Product TN-Q80-H1147
HF Read/Write Head
Order number: 7030007- Rectangular, height 40 mm
- Active face on top
- Plastic, PBT-GF30-VO
- Powered and operated only via connection to BL ident interface module
- Electrical connection only via BL ident extension cable
General data
| EAN | 4047101115017 |
| eCl@ss-Code (V5.1.4): | 27280401 -/- Identification RFID |
| Customs tariff number | 84719000000 |
| Country of origin | DE |
| Weight | 311 g |
Technical Data
| Technology | HF RFID |
| Radio communication and protocol standards | ISO 15693, NFC Typ 5 |
| Design | Rectangular |

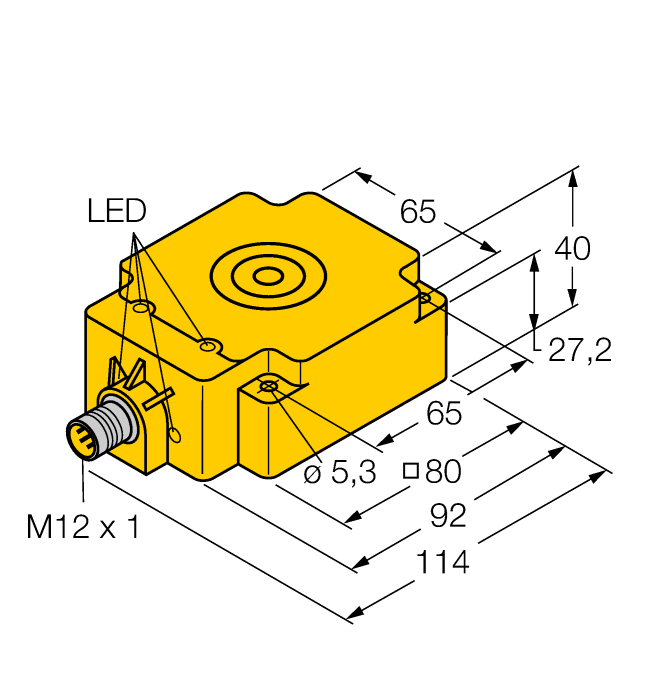

| Construction size | 92 x 80 x 40 mm, Q80 |
| Read/Write distance max. | 146 mm |
| Mounting conditions | Non-flush |
| Network protocol | Connection to RFID interface |
| Housing material | Plastic, PBT-GF30-V0, Yellow |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
Data Sheets
| German | 1337 KB |
| English | 1337 KB |
| French | 1337 KB |
| Spanish | 450 KB |
| Czech | 1338 KB |
| Dutch | 1337 KB |
| Romanian | 1338 KB |
| Russian | 1344 KB |
| Polish | 1338 KB |
| Chinese | 1408 KB |
| Turkish | 1338 KB |
